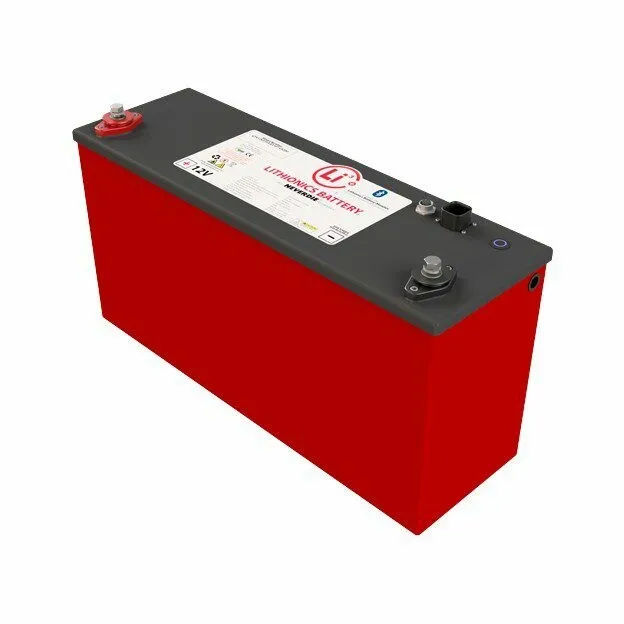

Lithionics - 12V 320Ah E2107 GTX Self-Heating LiFePO4 Battery
High-capacity power built for demanding adventure-van systems
The Lithionics GTX12V320A-E2107-CS200 combines 320Ah of LiFePO4 capacity, 4,096Wh of stored energy, internal heating, and an integrated NeverDie® BMS in a compact 12.8V battery engineered for RV and marine power systems.
Frequently purchased with

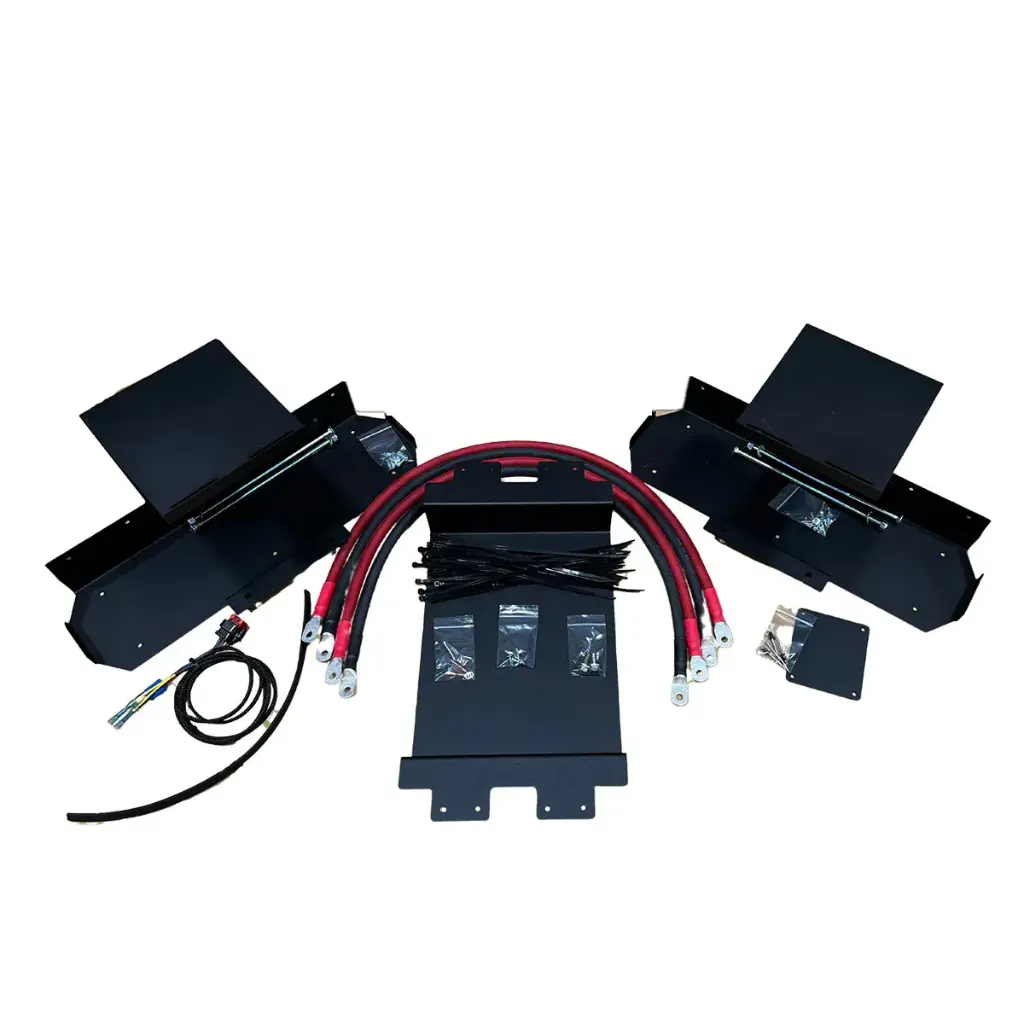

RoamRig 2nd Battery Mounting Kit — 3rd Gen Revel
Securely integrate this battery into a 3rd Generation Revel with structural trays, a finished lower-battery cubby, remote switching, interconnect wiring, and installation hardware. Battery and labor are sold separately.
View the mounting kitWhy this battery stands out
- 320Ah / 4,096Wh: substantial usable energy for extended off-grid operation
- Internal heating: supports charging in cold conditions down to -4°F (-20°C) when the heater system is active
- NeverDie® reserve: protected reserve energy plus high/low-voltage and temperature cutoffs
- Connected monitoring: Bluetooth telemetry through the Lithionics app and RV-C CANbus integration
- High-current capability: up to 230A continuous discharge and 1,200A pulse discharge for one second under manufacturer-specified conditions
- Adventure-ready enclosure: approximately 68 lb with an IP66 environmental rating
Technical specifications
| Model | GTX12V320A-E2107-CS200 |
|---|---|
| Nominal voltage | 12.8V |
| Capacity / energy | 320Ah / 4,096Wh |
| Recommended charge voltage | 14.4V |
| Recommended charge current | 150A or less |
| Maximum charge current | 200A under manufacturer-specified conditions |
| Maximum continuous discharge | 230A under manufacturer-specified conditions |
| Pulse discharge | 1,200A for one second |
| Dimensions | 20.3 × 6.4 × 10.0 in |
| Weight | Approximately 68 lb |
| Mounting orientation | Upright only, terminals facing up |
| Environmental rating | IP66 |
| Maximum inverter size | 3,000W when installed to an approved Lithionics design |
Integration features
The internal BMS provides over-charge, over-discharge, short-circuit, and temperature protection. Manufacturer documentation also specifies remote power-switch support, auxiliary DC-breaker control, alternator field-control capability, RV-C telemetry, Bluetooth monitoring, and battery-life recording for this CS200 platform.
Installation and fitment
ODB uses this battery in engineered upgrades where mounting, conductor sizing, fusing, charging sources, inverter demand, battery communication, and system configuration have been reviewed together. For a 3rd Generation Winnebago Revel, pair it with the RoamRig mounting kit above for a clean second-battery installation.
View the Lithionics specification sheet or read the manufacturer user guide.
Frequently asked questions
Is the battery self-heating?
Yes. Lithionics specifies an internal heater that permits charging down to -4°F (-20°C) when the heater system is active and the installation follows the approved design.
Can this battery run a 3,000W inverter?
Yes, within a published and approved Lithionics installation. The manufacturer does not approve this model for inverters larger than 3,000W or parallel-connected inverters.
Can batteries be connected in series?
No. Lithionics states that this battery may not be connected in series to create a 24V or higher-voltage bank. Any parallel-battery design must be reviewed for matching, protection, wiring, and controls.
Does ODB install and configure it?
Yes. Battery sourcing, mounting hardware, freight, installation labor, system programming, and testing are quoted separately for the specific vehicle.
Availability
This is a direct-sourced, special-order battery. Contact Overland Design-Build to confirm current Lithionics availability, freight, vehicle fitment, and installation scheduling.
