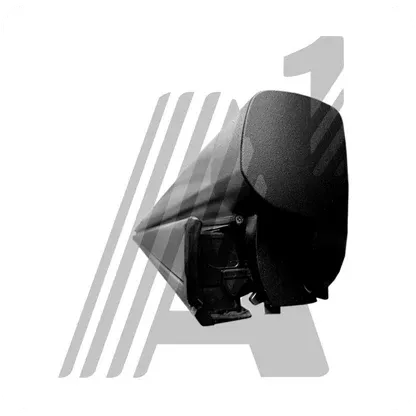

Nomadic Innovations - A1 Rack Mount/Side Mount Electric Awning (10 FT)

https://www.overlanddesignbuild.com/web/image/product.template/675/image_1920?unique=3925eb3
Embrace the challenge of the road head-on! The A1 Electric Awning is engineered to tackle the harshest conditions. Go ahead, push your limits!

Key Features
  • Compatible with all Van and RV models
  • Available in 13’ and 10’ case lengths providing maximum shade!
  • Heavy-duty aluminum and stainless still construction
  • Handheld Remote Control included
  • Max Leg extension 7.9’
  • Brilliant white COB LED lighting strip

$ 1,777.95 1777.95 USD $ 1,777.95

$ 1,777.95

Not Available For Sale

This combination does not exist.

Contact Us


A1 Electric Awning (13' and 10' models)

  • Nominal Case x Awning Ext: 13.1' x 8.2' or 9.8’ x 8.2’
  • Shade Surface (@ 12pm): 13' = 107.4ft / 10' = 80.7ft2

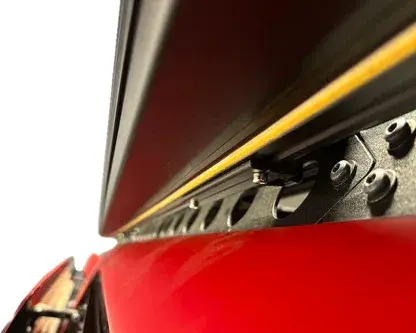

  • Mounting Plates: Wall (Flat Surface)

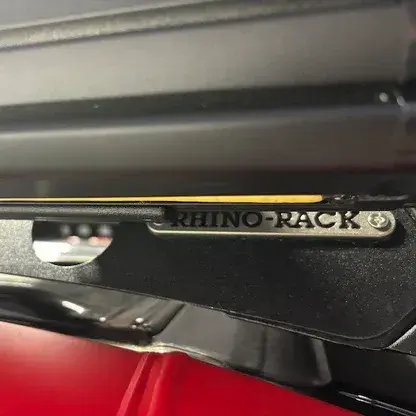

  • Mounting Plates (Coming Q4): Rack (Curved Surface)
  • Power: 12V DC (or 24V)
  • Motor: Worm-gear DC 12V (or 24V)
  • Hardware Material: Heavy-Duty Aluminum
  • Hardware Finish: Electrostatic Liquid Paint
  • Tension Arms: Spring-loaded stainless steel chain
  • Locking Mechanism: Yes
  • Pitch Adjustment: 5° - 15°
  • Fabric Materials: 460gsm vinylic PVC fabric
  • UV Resistant: Yes/50+ (98% UV blockage)
  • Water Resistance (Grade V): 50kPa of hydrostatic pressure
  • SVHC (Hazardous Materials): Pass @ ≤0.1% (weight for weight)
  • Color Fastness (to Light, Rubbing): Grade 4-5 (highly resistant)
  • Anti-Fungal Growth Rating: 0 (None) @ (1.1x10^6)/mL
  • Light Strip: White COB LED
  • Motor Wire Gauge: 18AWG
  • Warranty: One (1) Year


Fits: 2007+ Mercedes and Freightliner Sprinter vans (2500, 3500. Includes 4 and 6 cylinder)


A1 Installation Manual

Simple installation with no permanent modifications to your van. Pedal Control 2.0 daisy chains easily between just above the throttle. It installs in about a minute or two. Then you simply download the app and you can select the program best for you.

Does not affect vehicle warranty and does not add any HP to the van. The product smooths the power delivery and makes the van more responsive to driver inputs.

PLEASE CAREFULLY READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE ATTEMPTING INSTALLATION.

The Pedal Control 2.0 has been carefully designed and rigorously tested. Please follow all installation instructions

  1. Turn off the ignition and wait five minutes.
  2. Loosen the plug connection from the original plug adapter.
  3. Attach both OEM connectors to the accelerator pedal sensor.
  4. Lay the cables in such a way that they are securely installed and are not interfering with anything else.
  5. Relocate the Pedal Control to a suitable location.
  6. Launch the app from your smartphone.
  7. Pair your smartphone to the Pedal Control with the default PIN “123456”

Never install or remove with the ignition system active. Always switch off the ignition and wait 5 minutes for all electrical systems to power down and fully discharge. Some vehicles may require additional time to power down.

On most vehicles, the connection for the Pedal Control 2.0 is close to the accelerator pedal or the steering column. You must ensure that the Pedal Control and the associated wiring loom do not interfere with the operation of the pedal or the steering and are secured at all times.

PEDAL CONTROL 2.0 SOFTWARE IS ONLY AVAILABLE FOR USA AND CANADA. WE DO NOT HAVE ACCESS TO SOFTWARE FOR EUROPE OR THE REST OF THE WORLD AT THIS TIME!
