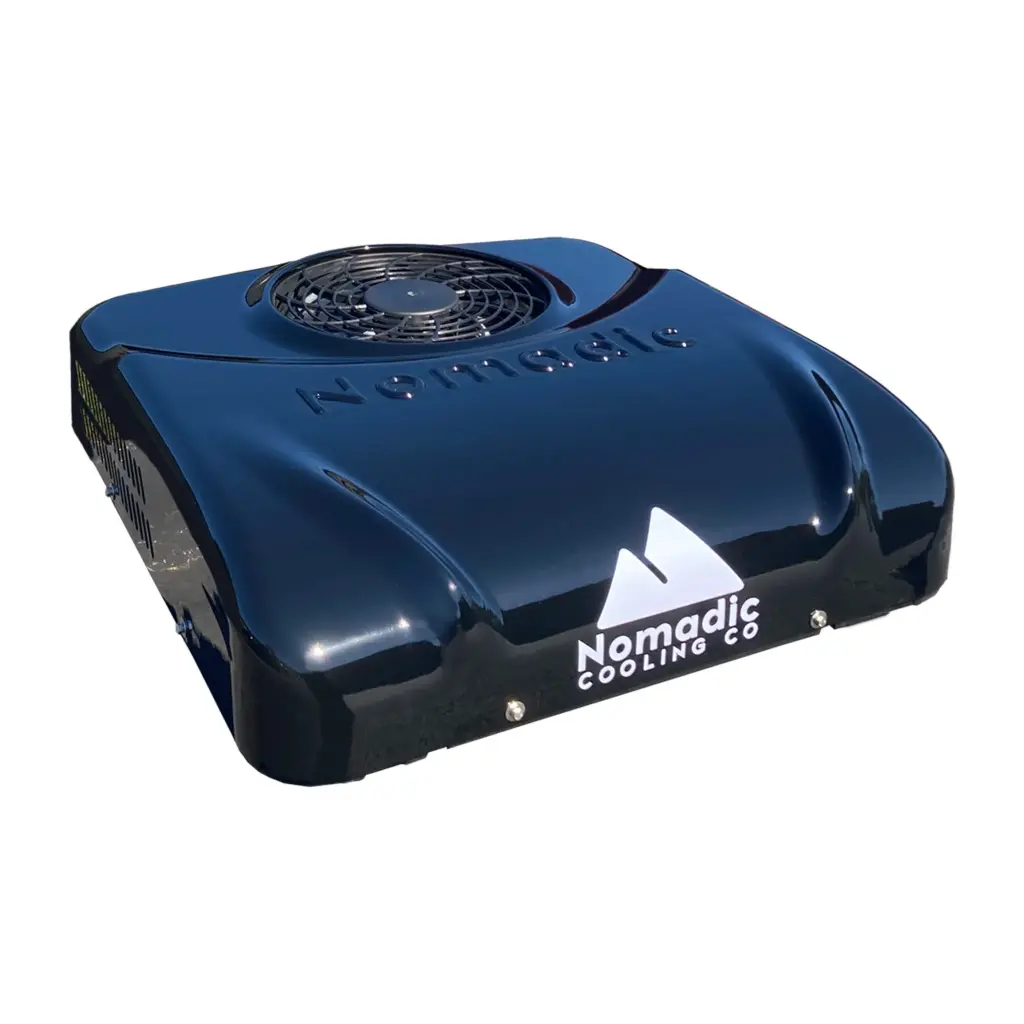

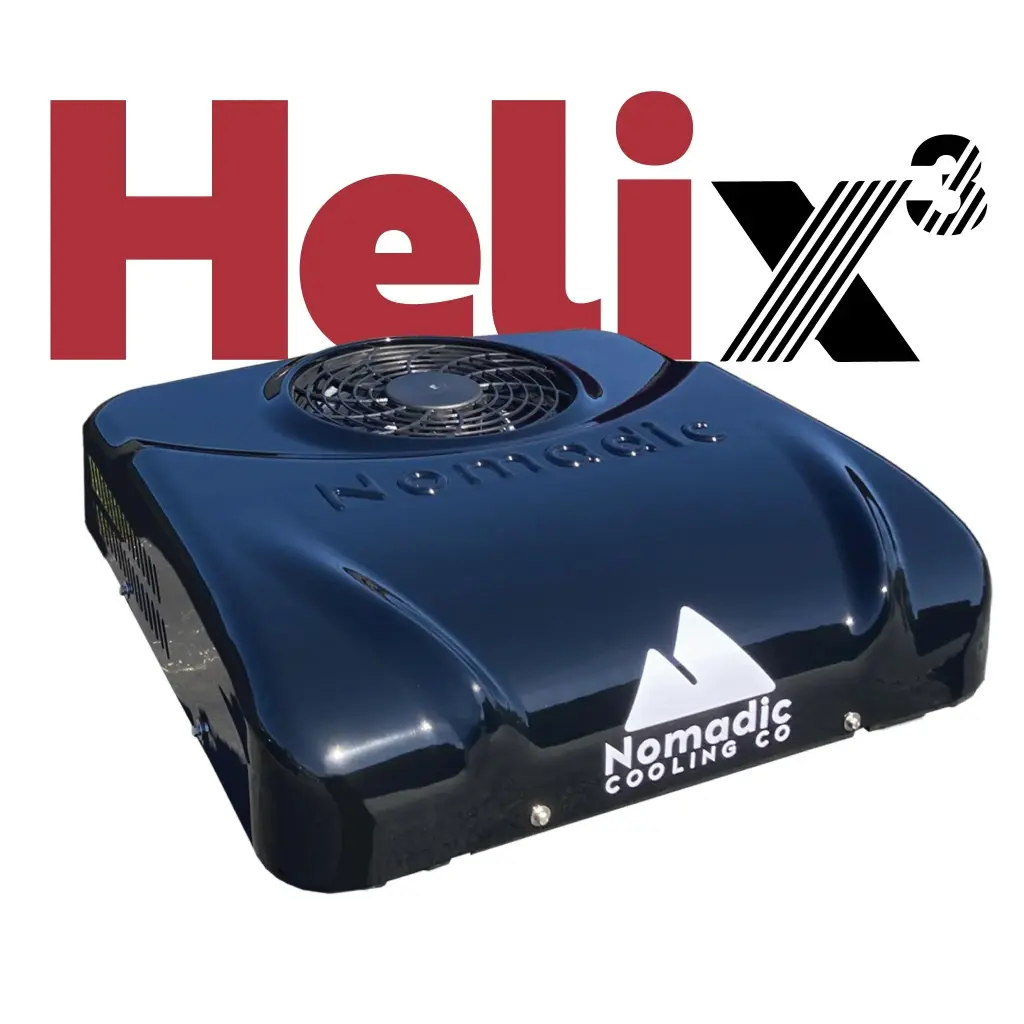

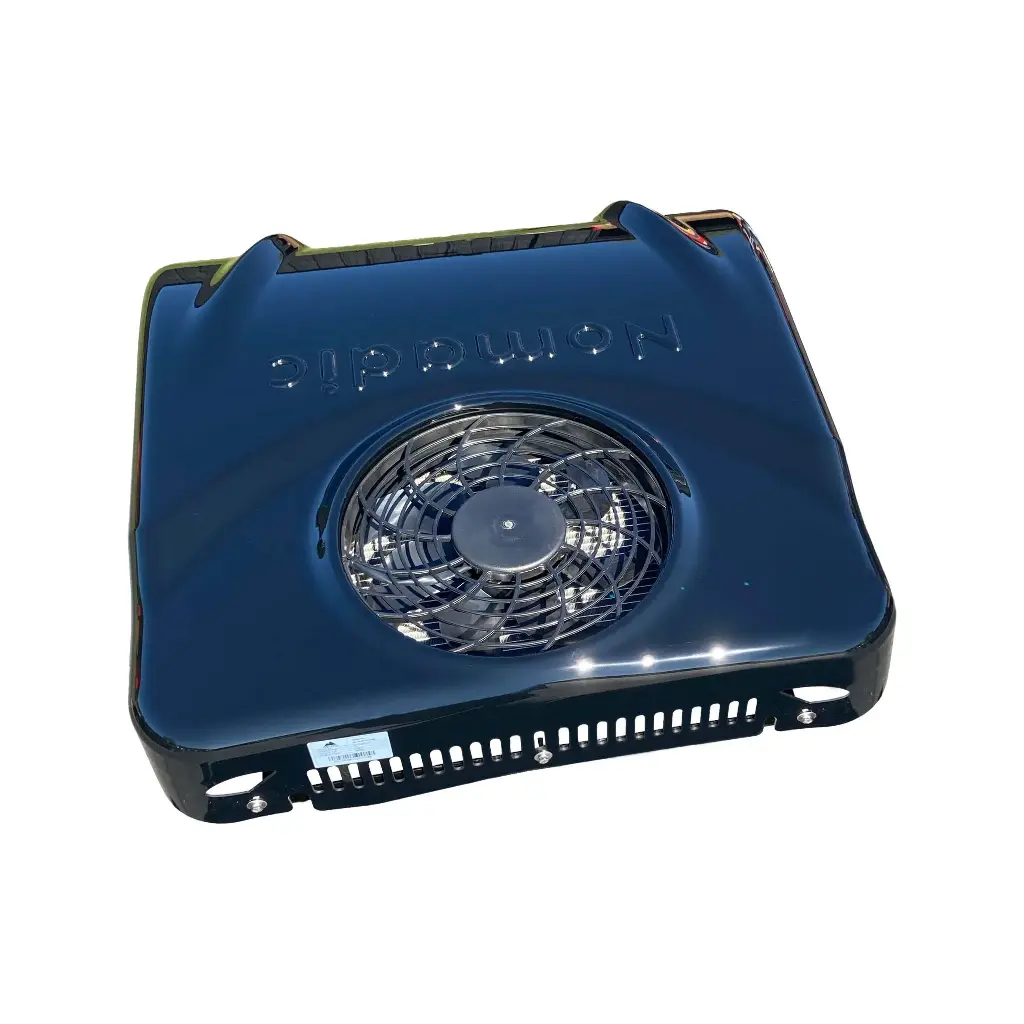

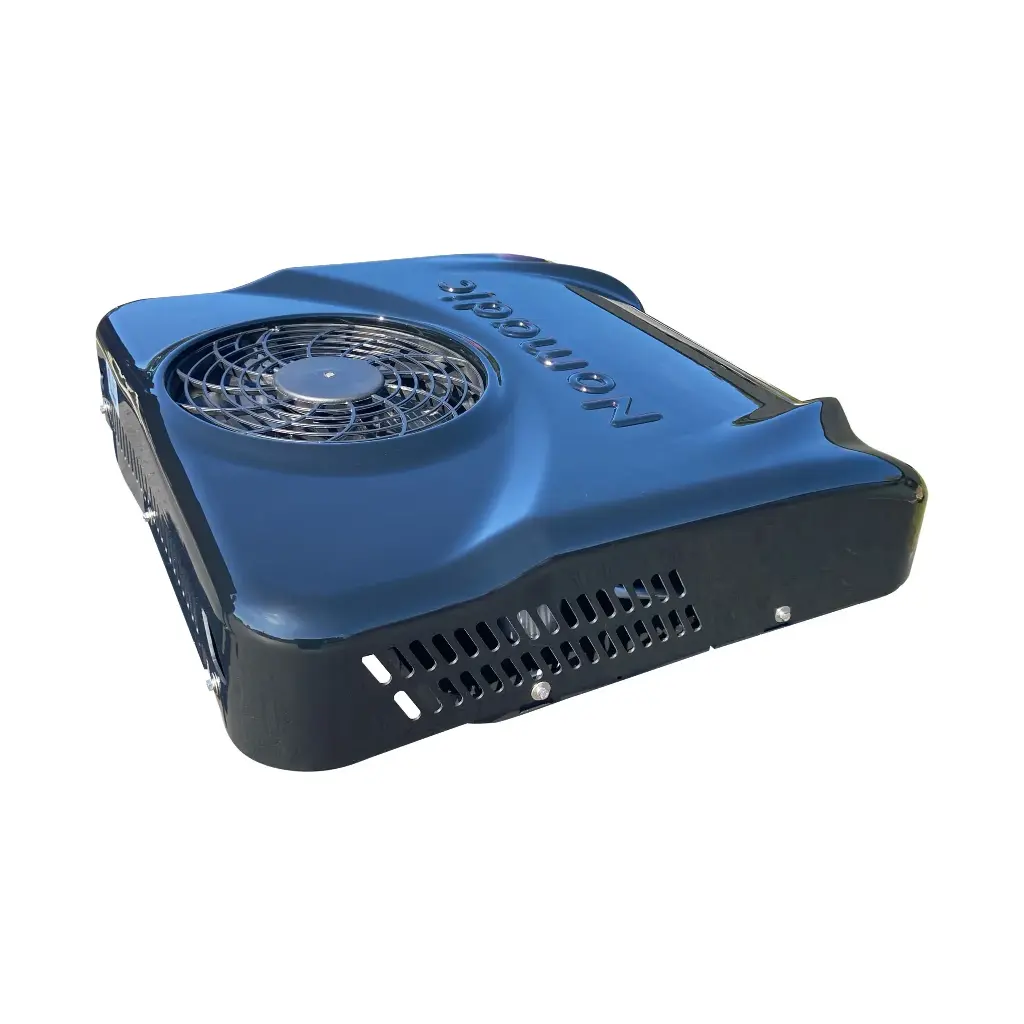

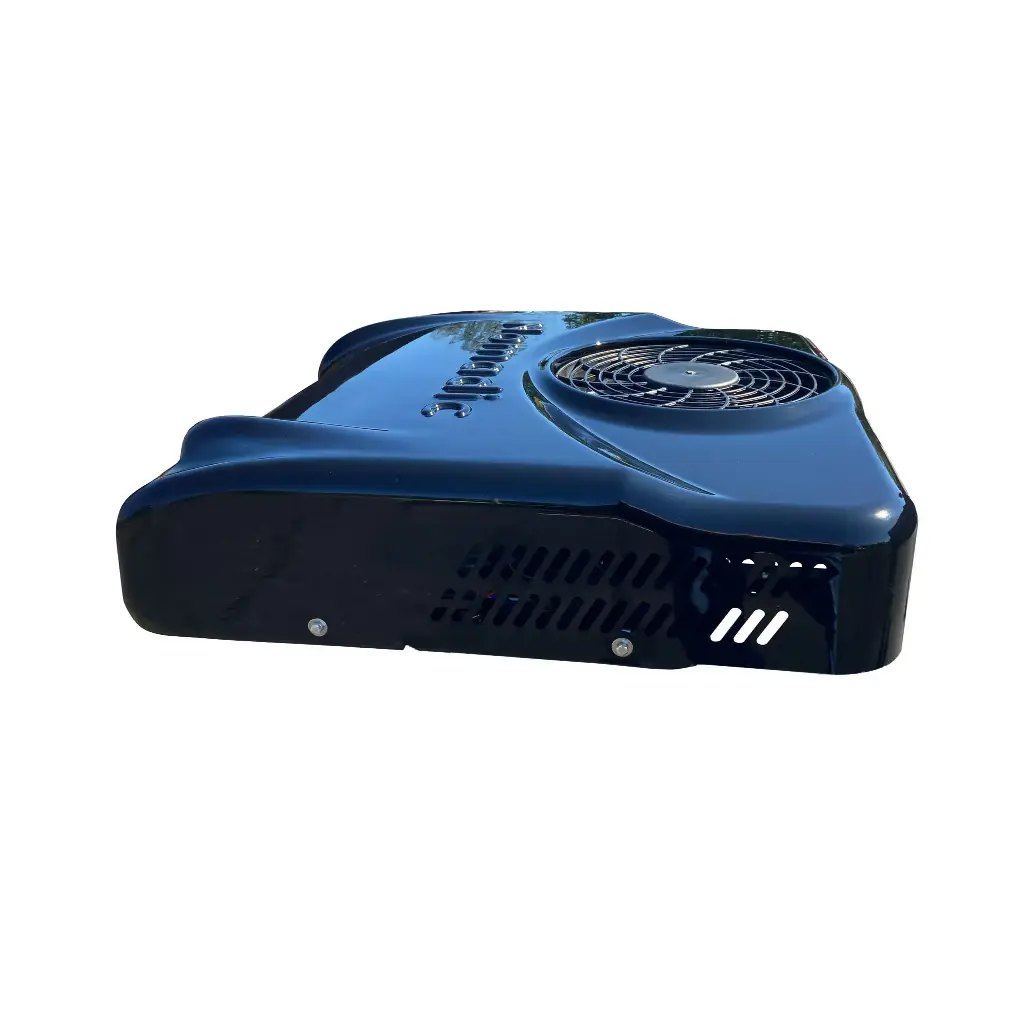

Nomadic Cooling - X3 Helix 12V Rooftop RV Air Conditioner — Helix-Ready, PWM Smooth Cooling

https://www.overlanddesignbuild.com/web/image/product.template/1718/image_1920?unique=45673b5

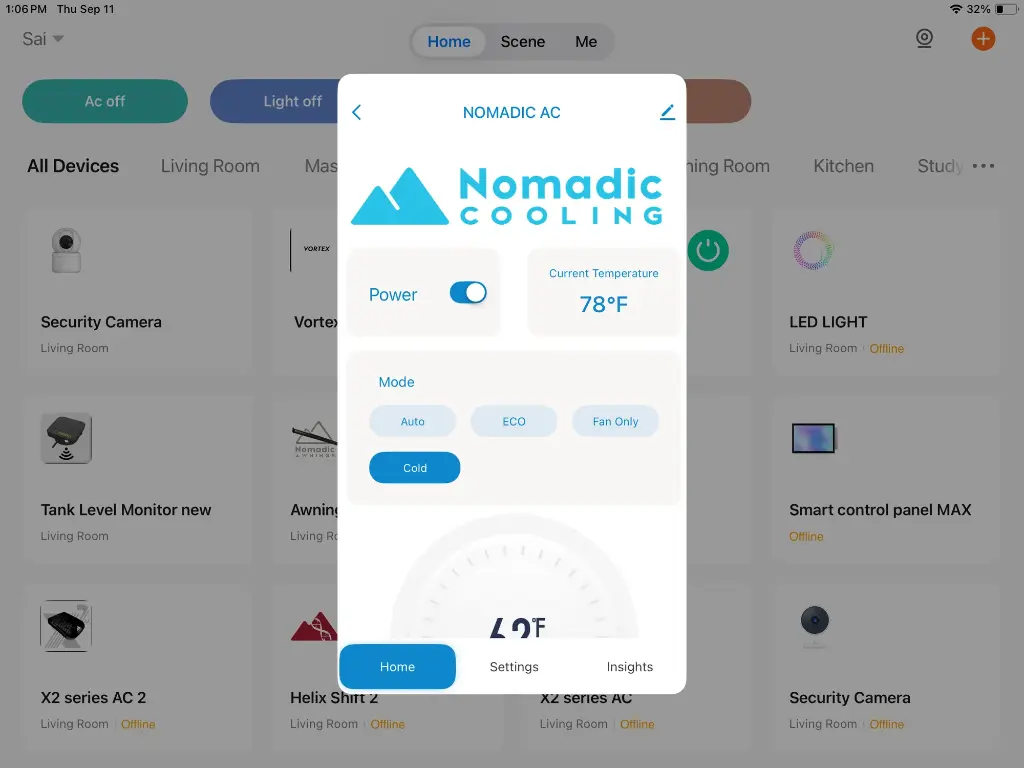

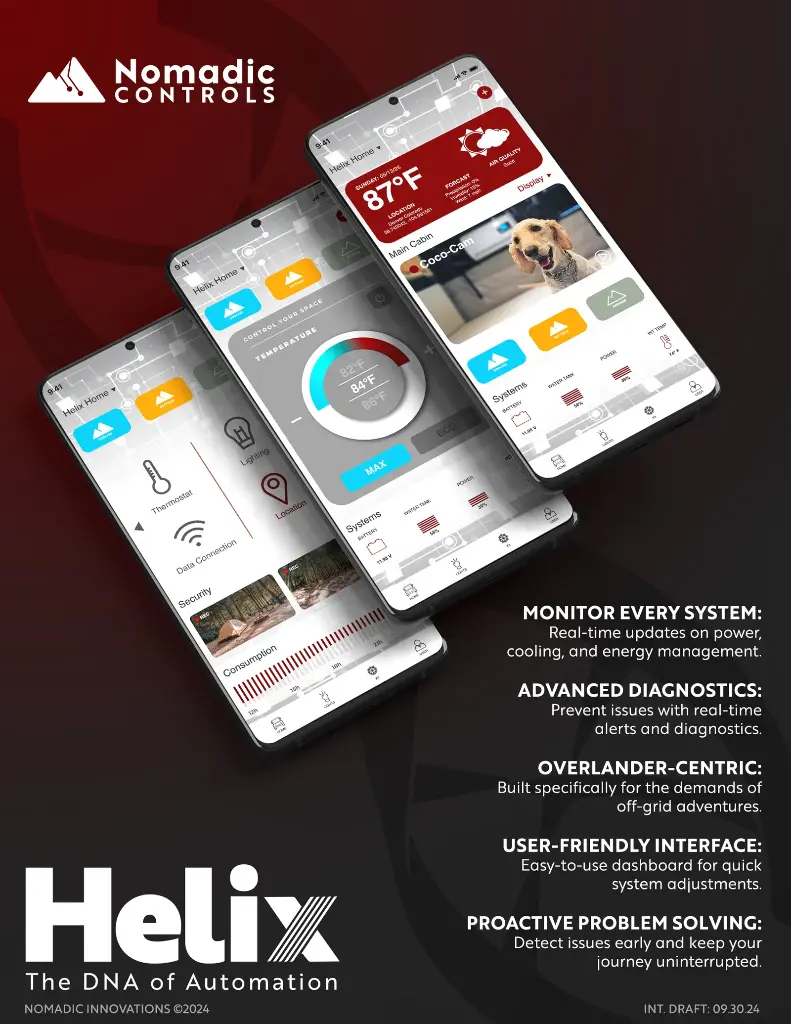

X3 Helix is the next step in our X-Series—built for people done with heat soak, sticky humidity, and “apps” that stop at Bluetooth range. An efficient PWM compressor modulates instead of hard cycling, so your 12V rooftop air conditioner holds target temperature with less battery stress. Helix adds scenes, schedules, and true remote access on phone, tablet, and watch—pre-cool before you return, keep pets safe while you’re out, and see live status anywhere.

  • Steady comfort: smooth modulation, less overshoot.
  • Real remote control: set and adjust from anywhere (not range-bound).
  • Cleaner interior: flush powder-coated metal faceplate (no bulky plastic box).
  • Humidity handled: High Humidity mode for van/RV cabins.
  • Built for miles: corrosion-resistant stainless hardware (our long-standing standard).
  • US-based support: Elkhart, Indiana—level-one techs and engineers.
  • Options: 12V Black or White.
  • Coach integration: RV-C ready via the optional Helix AC Controller for multiplex coach panels.

Bottom line: if you’ve outgrown on/off cycling and short-range apps, X3 Helix delivers steady comfort, real control, and road-ready construction.

$ 3,750.00 3750.0 USD $ 3,750.00

$ 3,750.00

Not Available For Sale

  • Color/Finish

This combination does not exist.

Contact Us


Share

The X3 Plus is the powerhouse variant in our Eco Level lineup—built on the rugged, reliable foundation of the Standard X3, but designed for adventurers who demand the ultimate cooling experience. While the Standard X3 delivers high-capacity off-grid performance, the X3 Plus takes it further with smarter control logic, climate-conscious refrigerant, and foam-insulated ducting for maximum efficiency.


A redesigned faceplate improves airflow, while features like high-humidity operation, mute mode, and stainless steel compressor support boost durability and functionality. Whether you choose the Standard or go for the Plus, you’re investing in one of the toughest and most capable off-grid air conditioners out there—built to handle any terrain and any adventure.

TECHNICAL SPECS - 12V DC MODEL

  • Current Eco Mode: 50A
  • Current Max Mode: 110A
  • Rated Power (W): 1,320
  • Rated Cooling Capacity (BTU): 11,830 (Max)
  • Refrigerant: R134a
  • Refrigerant Oil: POE68
  • Refrigerant Quantity(g): 600 ±30
  • Speed Range: 1,000-3,000 RPM
  • Weight: 57.3 lbs
  • Outdoor Size (IN): 31.33 × 31.5 × 7.36
  • Power Cord Specification (IN): 2 AWG

NOTABLE MENTIONS

  • Fits in industry-standard 14x14" opening
  • One of the smallest form factors
  • Brushless internal fans
  • A sight glass for on-the-road troubleshooting
  • Modern LCD panel
  • Stainless steel hardware
  • Spring bushing-mounted compressor
  • Powder coated interior components
  • Rubber dampening feet
  • One (1) year warranty
  • One-year extended warranty available​
