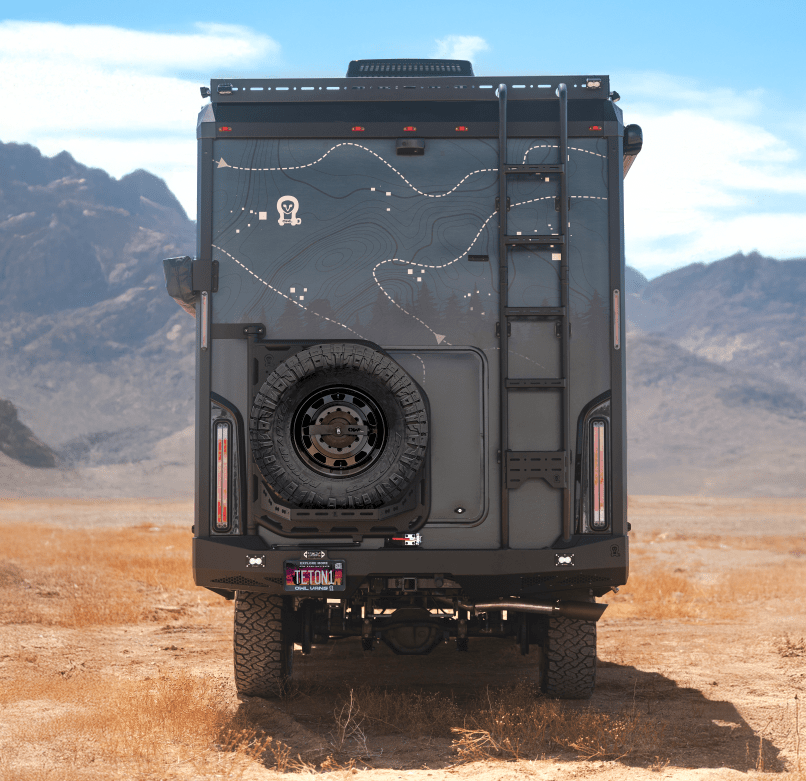

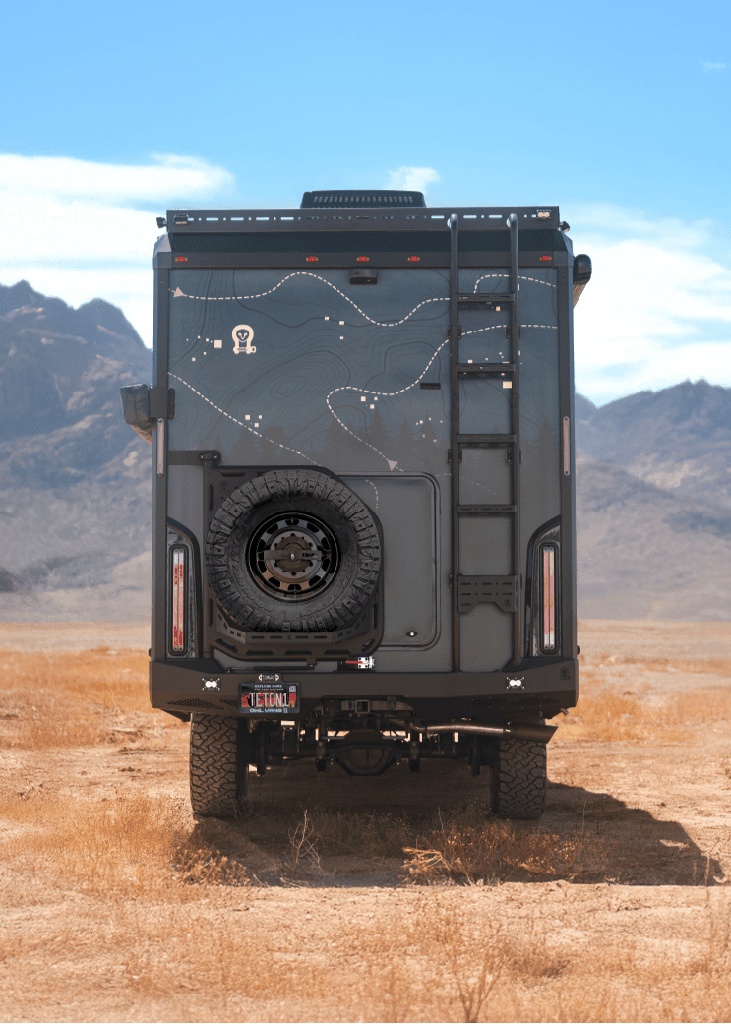

Owl Teton Rear Bumper Cargo Carrier System | Winnebago EKKO Sprinter 23B
Patent pending. The Owl Teton Series Rear Carrier System adds modular storage, recovery, and gear-mounting capability to the Winnebago EKKO Sprinter platform.

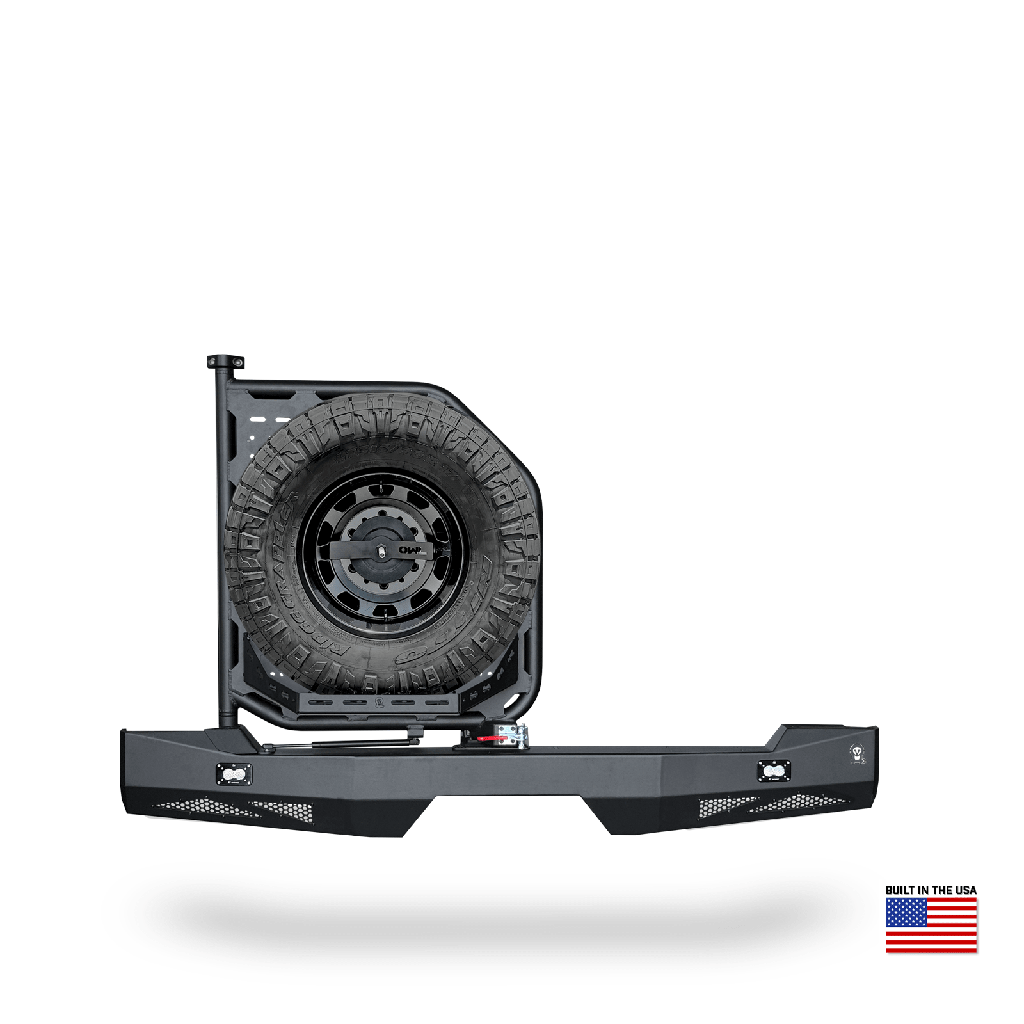

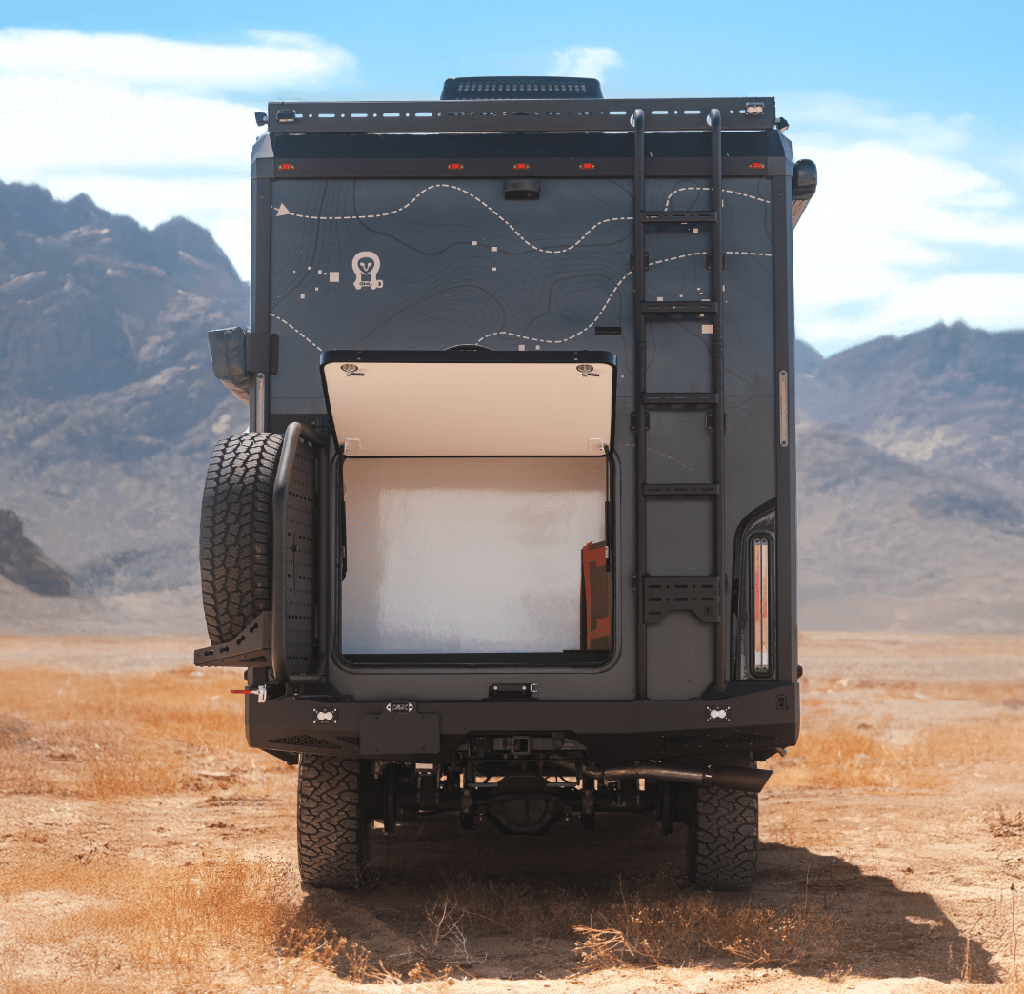

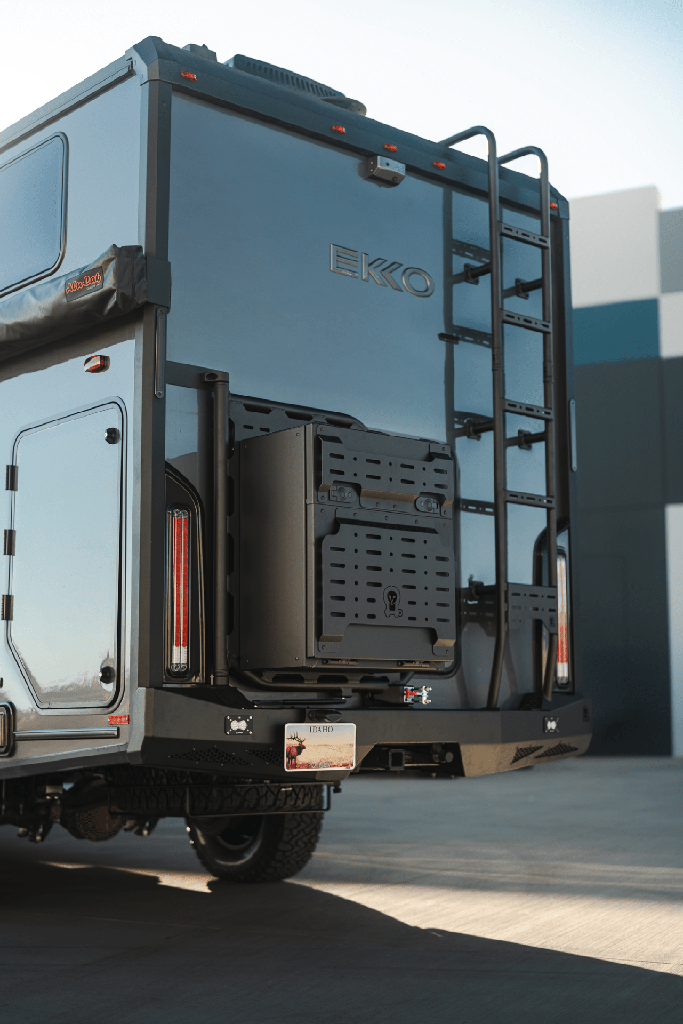

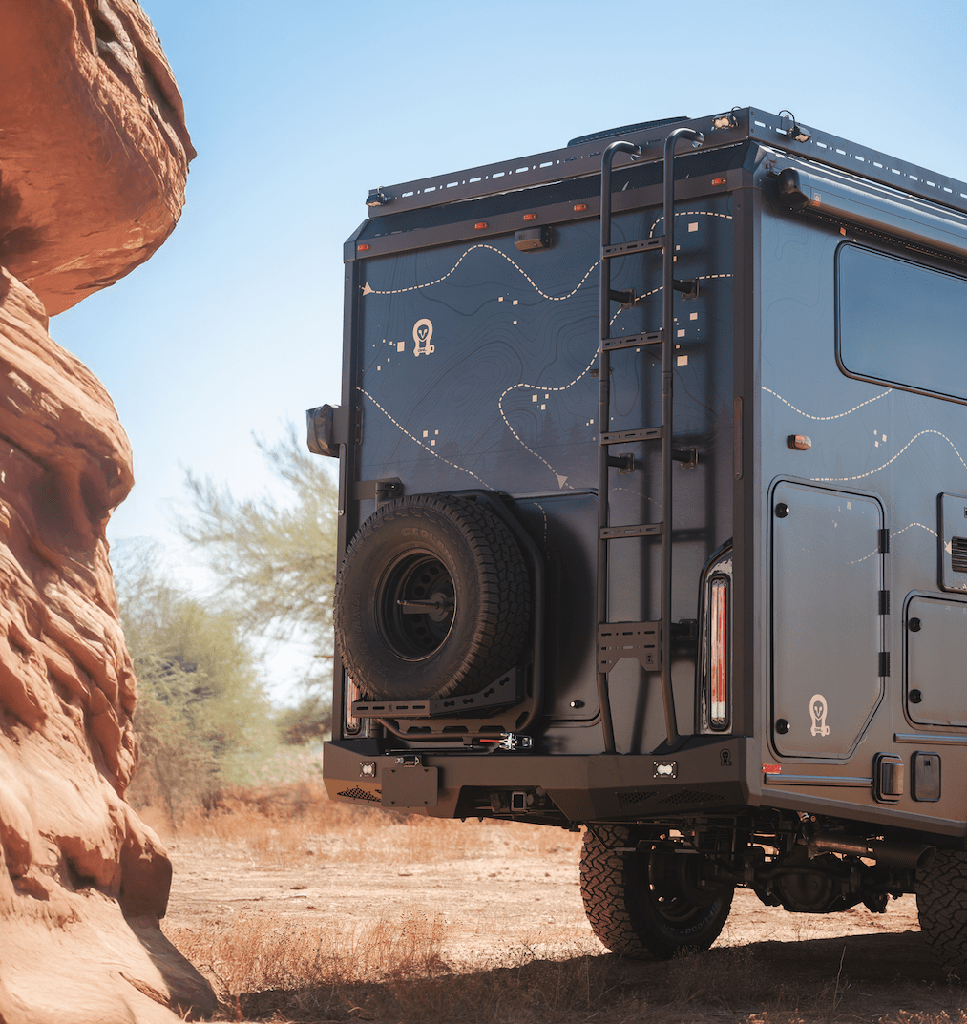

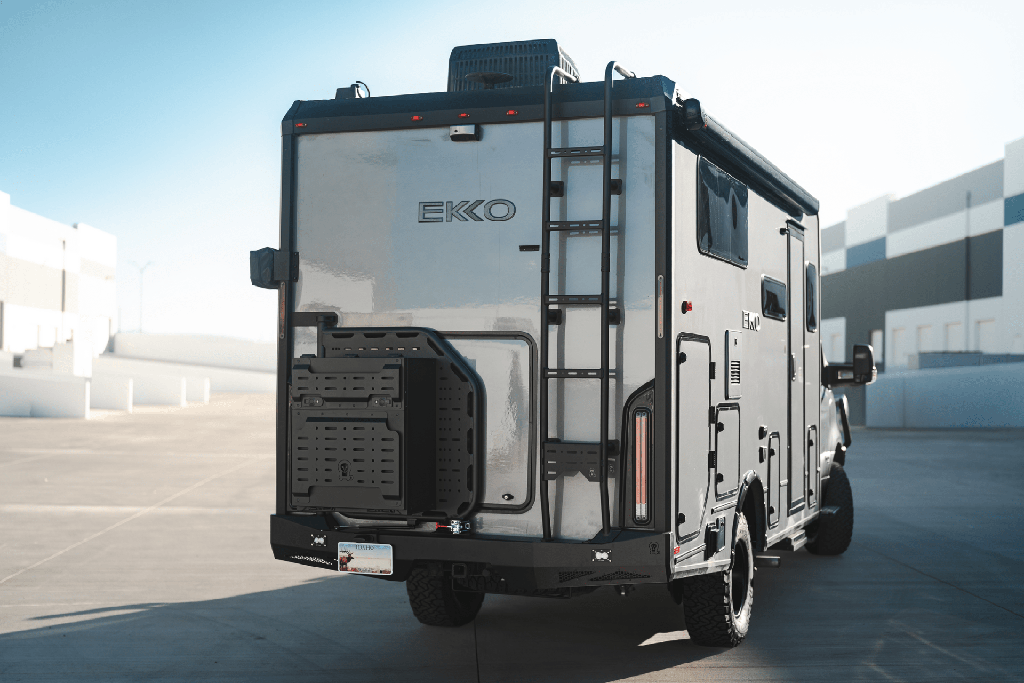

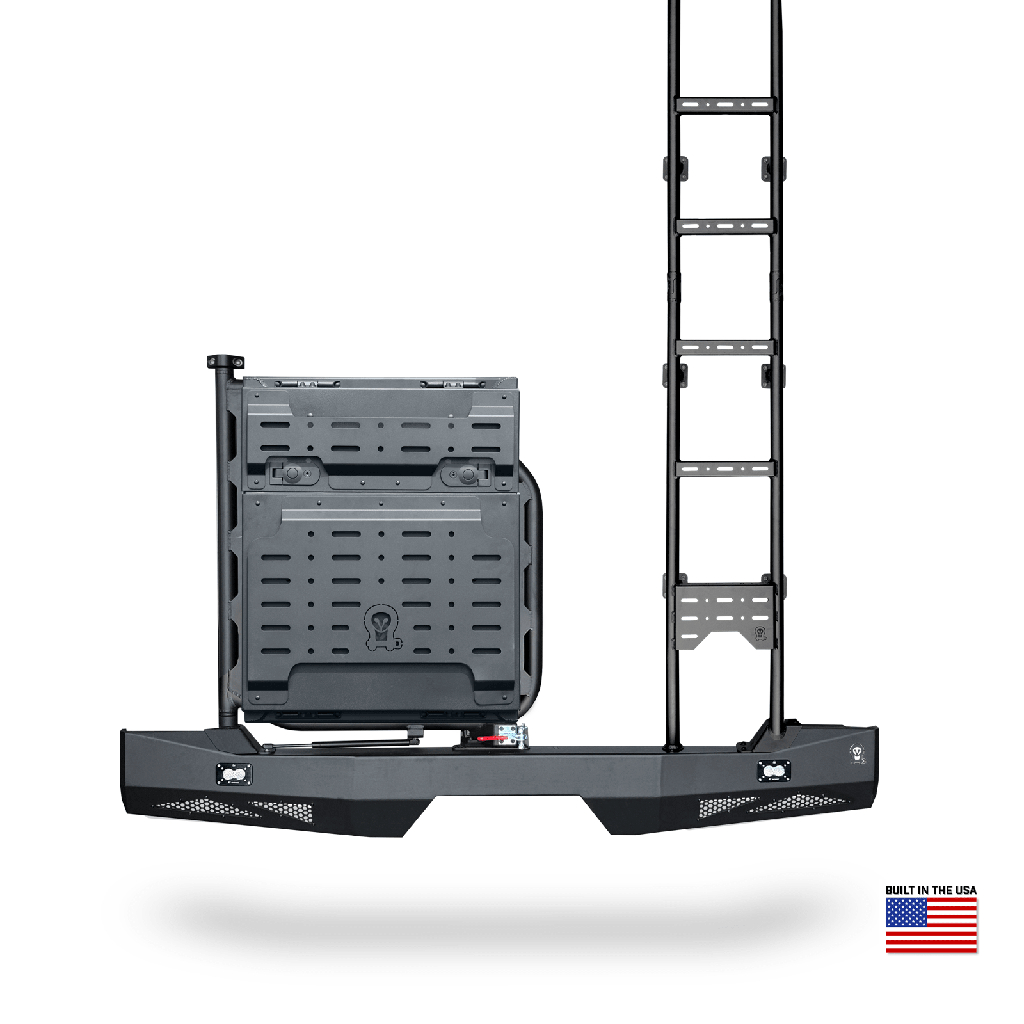

The system is built around a chassis-mounted steel rear bumper and can be configured with a high-capacity swing-out carrier, Owl Pro Ladder, and tire basket. Choose the exact configuration needed; components marked “requires Bumper” are not standalone installations.
Configuration choices
- Bumper
- Bumper + Swing-Out Carrier
- Bumper + Swing-Out Carrier + Ladder
- Bumper + Ladder

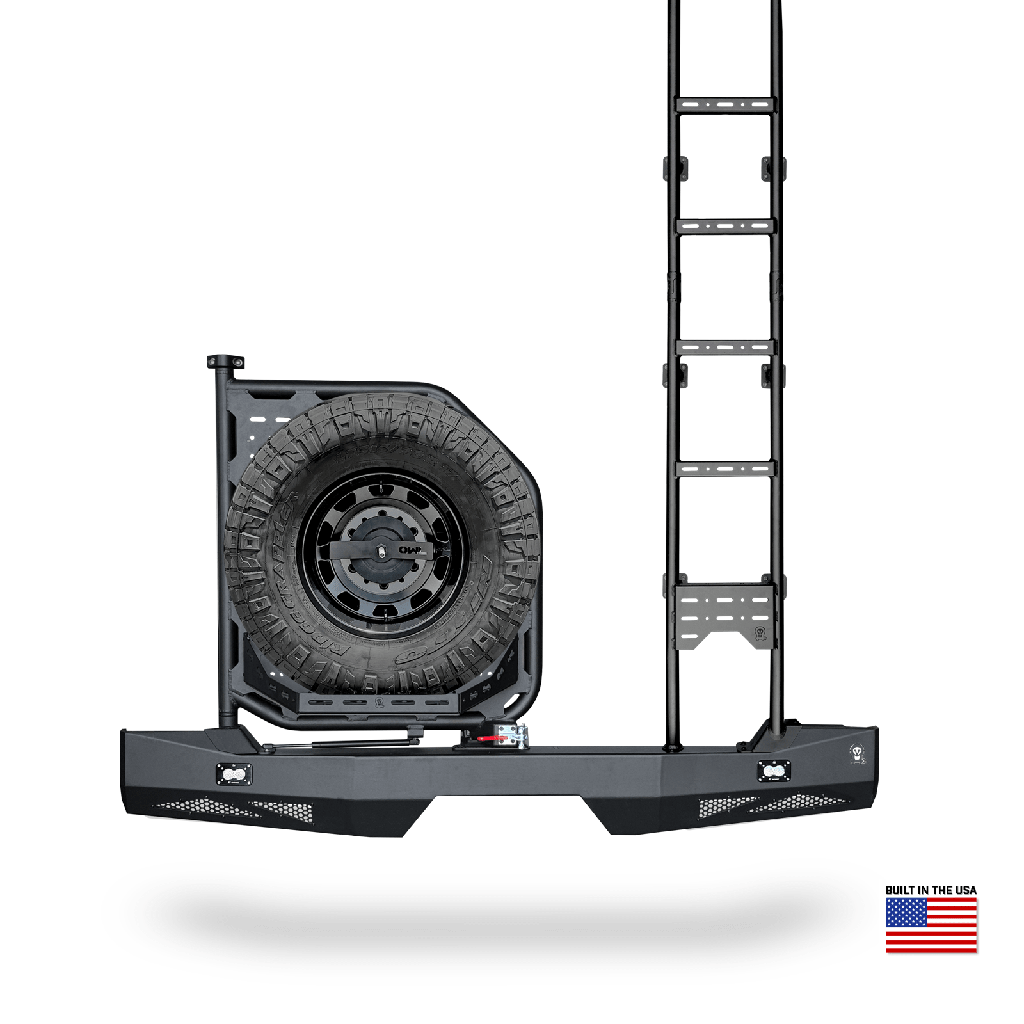

- Full System: Bumper + Swing-Out Carrier + Ladder + Tire Basket
- Swing-Out Carrier (requires Bumper)
- Ladder (requires Bumper)
- Tire Basket
Why choose the Teton system
- Lightweight aluminum carrier and ladder components rather than heavy steel
- Built in the USA
- Three-year limited manufacturer warranty from Owl
Product features
- Modular mounting for spare tires, cargo boxes, recovery gear, and additional overland accessories
- Laser-cut pockets for optional Baja Designs S2 rear lights; lights are sold separately
- Built-in mesh breathers
- Threaded accessory mounts for future upgrades
- Optional TIG-welded aluminum Owl Pro Ladder with modular mounting plates for exterior gear storage and roof access
Published specifications
Bumper
- Mounting: directly to the chassis frame rails
- Material: steel
- Finish: dual-layer black powder coat

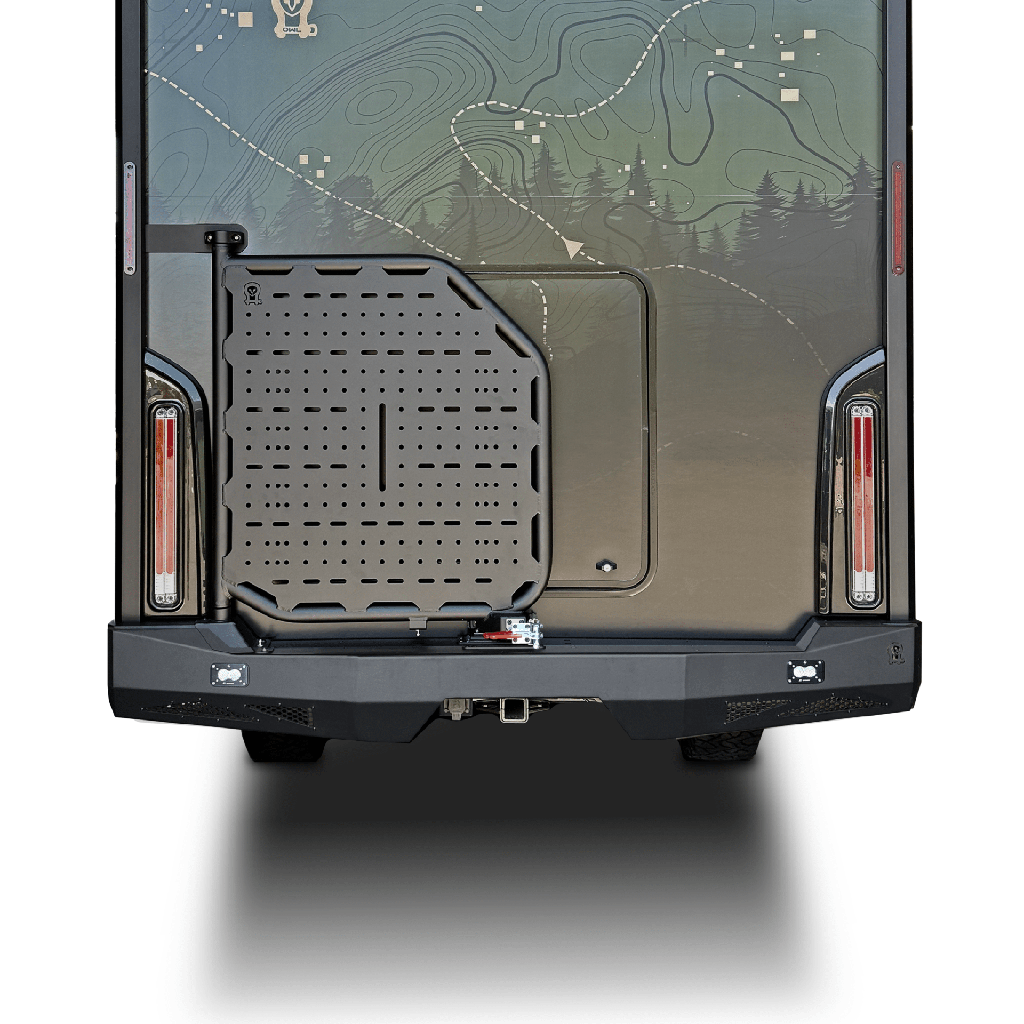

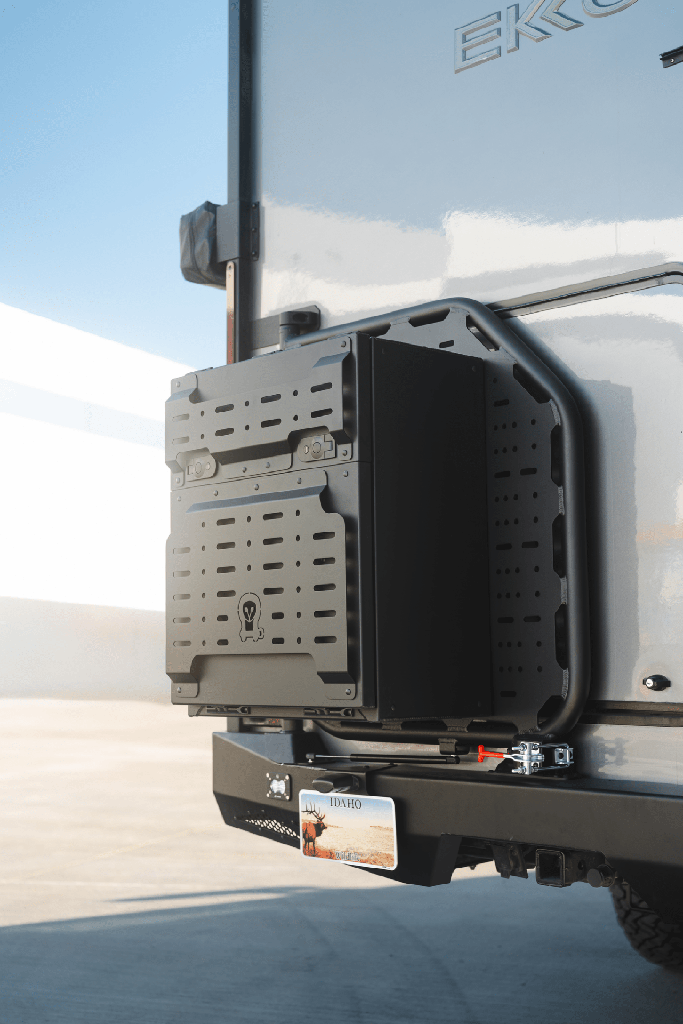

Swing-out carrier
- Material: TIG-welded aluminum
- Accessory compatibility: recovery gear, spare tire, cargo boxes, and compatible accessories
- Published load capacity: 100 lb
Ladder
- Requires the Teton Rear Bumper
- Material: TIG-welded aluminum
Tire basket
- Depth: 13 1/8 in
- Width: 30 3/8 in at the rear, tapering to 17 in at the front
- Height: 8 in at the rear, tapering to 2 1/2 in at the front
The base of the modular carrier system
The Teton Rear Bumper is the backbone of the system. It mounts directly to the chassis frame rails to provide the structural base for swing-outs, lighting, recovery gear, and future compatible upgrades while preserving a modular build path.
Vehicle compatibility
Compatible: Winnebago EKKO Sprinter 23B (2023–present) on the Mercedes-Benz Sprinter 3500 AWD VS30 chassis.
Not listed as compatible: other Mercedes Sprinter vans, Ford Transit-based vans, Ram ProMaster-based vans, and INEOS Grenadier vehicles. Confirm the exact vehicle, chassis, bumper, and accessory configuration before ordering or installation.
Vehicle-specific fitment approval plus current vendor cost and availability are required before the quotation is marked Ready to Send.
Installation
Watch the manufacturer installation video: Install for Teton Rear Carrier System for Sprinter EKKO. Coordinate ODB-sold installation through Overland Design-Build.
