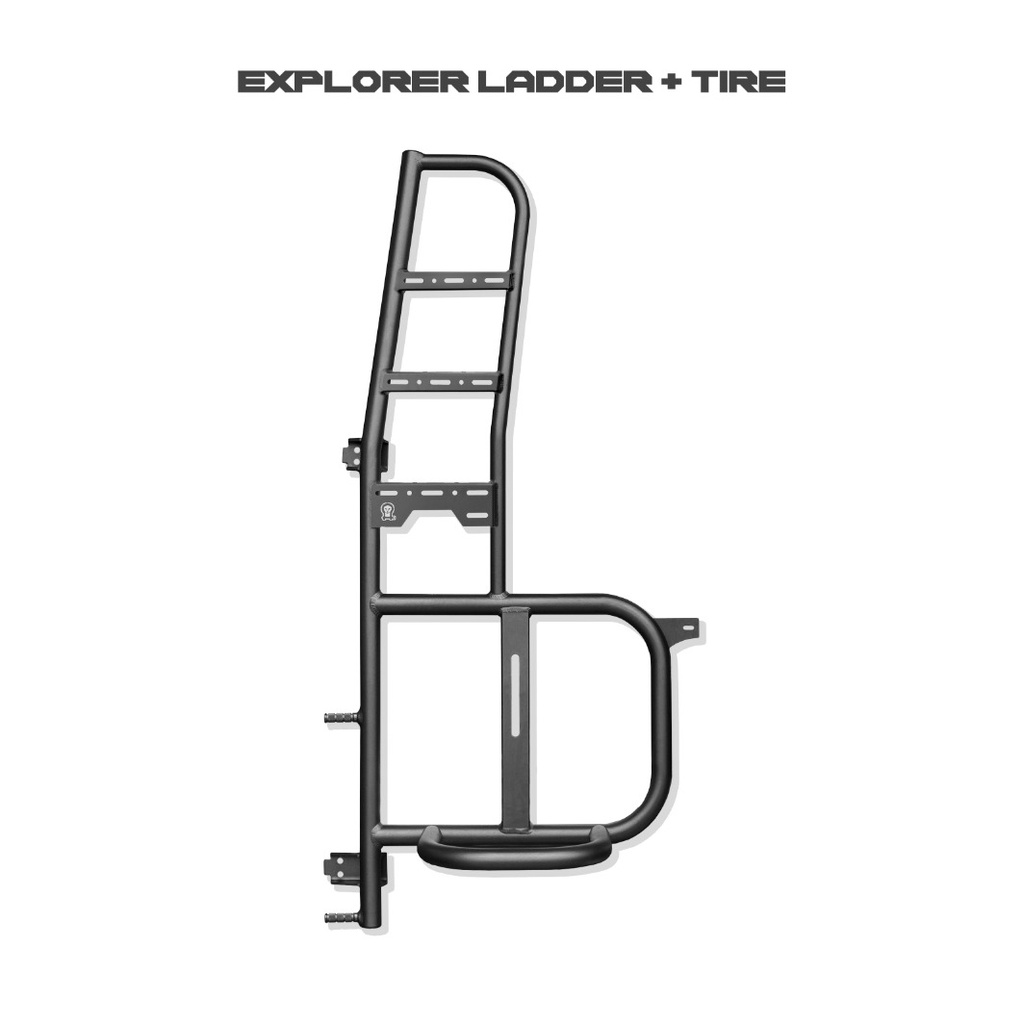

Owl Vans - Explorer Ladder + Tire Carrier | 19+ Sprinter & 20+ Revel / Storyteller

https://overlanddb-odbsh.odoo.com/web/image/product.template/482/image_1920?unique=a7260d1

Introducing the NEW Explorer Ladder + Tire Carrier. This new Ladder + Tire Carrier combines the incredibly popular mountable steps from our Explorer Side Ladder with our iconic Ladder + Tire Carrier.

This new design expands the function of the Ladder + Tire carrier to allow for mounting additional accessories on the rungs of the ladder. Additionally, this new step design expands the foot pad creating an even more stable platform to climb.

Fits: Sprinter VS30 2WD, 4x4, AWD High Roof (2019 to Present) (Revel, Storyteller, Airstream, Launch, Sanctuary, tranquility, Cahaba and many more)

*Note: Requires 180˚ hinges or a set of our modified 270˚ hinges (sold separately).


$ 1,998.98 1998.98 USD $ 1,998.98

$ 1,998.98

Not Available For Sale

  • Payload Class

This combination does not exist.

Contact Us
Most Popular (Revel)


What Type of Hinges Do I Have


There are two types of hinges that come on the VS30 MB Sprinter (2019+) vans, 180˚ and 270˚. Owl carriers require the 180˚ hinges (sold separately).


All Winnebago REVELs have 180˚ hinges. To figure out what type of hinges you have there are a few easy options:


Look at the image to the side. If you have holes in your hinges then you have the 180˚ hinges (top in the image).


If your doors open all the way and fold flat along the side of the van you have the 270˚ hinges.

The Owl Ladder + Tire Carrier was pioneered by Owl and has now become iconic in the Adventure Van industry. Years of development and testing have led to one of the most functional and bulletproof products on the market. The Owl Ladder + Tire Carrier for Sprinter is the seamless integration of two great products into a single unit. Get all the functionality of a ladder to access your roof as well as mount a full-sized tire.


Trail Tested - Our team is obsessed with quality and we abuse our gear on the toughest trails in the world. This means that when you order an Owl Ladder you are getting thousands of miles of torture testing before that gear ever reaches you. When you’re off the beaten path, miles from rescue, you can rely on your Owl gear to get you home.

Why Mount A Tire On The Rear? - This is a common question and the answer is simple. If you're going to be taking your van off-road, then you're going to need a full-sized spare. A full-sized spare is the first and most important piece of gear you can take off-road. The OEM space under the van is undersized for a proper spare. Even if you can stuff your tire under, it can often be hard or impossible to get out in muddy or off-road conditions. Remember, you should always prepare your van up for when things go wrong not when they go right.

Quality - Owl uses a more expensive but bendable aluminum alloy which allows us to make the product stronger and lighter. Other companies use cuts and welds instead of mandrel bends. Bends are always stronger than cuts and welds. This is why our team works to take out as many cuts and welds as possible even if it means the product is harder to build.

Trust - When you buy Owl you are getting the backing of the originators and still the industry leader in rear door carriers. This means years of rock-solid performance and literally millions of customer miles ensure you can count on your Owl Ladder + Tire Carrier.


Weight - We manufacture the Ladder + Tire Carrier to be incredibly lightweight while still incredibly rugged. Our Master welders take computer bent and cut aluminum tubing and TIG weld each joint to ensure perfect fit and performance. We encourage you to look at the welds and fit of Owl gear, even to the untrained eye, the attention to detail is instantly apparent.


Usability - The Ladder + Tire carrier was designed for ease of use from the beginning. Footpegs extend low below the tire to make climbing easy. The tire is situated as low as possible (without blocking the license plate) so that one person can easily get the tire on/off without assistance. A steel support hoop adds strength and carries the weight of the tire while being secured (tightening the spin-on handle). A spin-on tire handle allows access to the spare tire in seconds without tools.

  • Does not interfere with Parking Assist sensors on most vans (see FAQ page for fixing if it does)
  • All Tig Welded Aluminum
  • Requires 180˚ hinges (See hinge info below) selecting 270˚ hinges below will add to your order the Factory Mercedes Benz Hinge Replacement kit.
  • Lightweight (25lbs)
  • Low Roof Sprinters - We only have the Classic Ladder + Tire Carrier for low-roof vans
  • Additional footpegs on side tube (see images)
  • Spin-on tire holder with locking option
  • Adjust for different wheel/tire sizes (over 33" could require trimming of MB badge)
  • Powder Coated Black
  • DIY friendly with step-by-step install video
  • Opens with the door (nothing to swing out of the way or bumpers to buy)
  • Compatible with vans with rear windshield wipers
  • No need to relocate the license plate
  • No need to remove or swap out the Mercedes badge
  • Product requires drilling a single hole in the door. Template included.
  • Foot pegs must be screwed all the way down and be seated against the ladder to support weight


*NOTE - If you wish to mount a box, please get a "Box Mounting Tab" from our site in addition to your purchase


Fits: Sprinter VS30 2WD, 4x4, AWD High Roof (2019 to Present) (Revel, Storyteller, Airstream, Launch, Sanctuary, tranquility, Cahaba and many more)




Fits: Sprinter VS30 2WD, 4x4, AWD High Roof (2019 to Present) (Revel, Storyteller, Airstream, Launch, Sanctuary, tranquility, Cahaba and many more)

To be successful your content needs to be useful to your readers.

Few upgrades are as critical to a vehicle as a tuned suspension package. Adventure in comfort and confidence with a Van Compass system tuned for your van and needs. The Stage 4.3 system pairs the Van Compass Mini Leaf Spring pack with front and rear adjustable piggy back 3.3 Fast Adjust shocks and a front Sumo Spring bump stop upgrade. This system is intended for built out adventure vans, loaded work/play vans and Class B RV's that need a rear spring rate upgrade to counter build weight and correct rear sag that results in poor ride quality and wallowing handling. This kit can restore the ride height back to the original range, eliminates un-controlled swaying, and reduces harsh bottom out.
Falcon's 3.3 Fast Adjust Piggyback Reservoir Shocks represent the perfect pairing to upgrade your Sprinter's handling. Built specifically to Van Compass tune specifications, they represent the culmination of years of accumulated knowledge, applied directly to the adventure van market. These shocks have a MASSIVE range of compression adjustment at the simple flip of a knob. Van Compass put the large red knob in an easy to reach location that allows for easy access and quick confirmation of the settings. The rear shocks also include the SP2 adjustment, which allows for further refinement specific to your preferences and vehicle's weight; with a simple turn of the shaft one of 2 tune profiles is engaged during installation.
The Van Compass Stage 4.3 system retains the factory suspension geometry and transforms the Mercedes Sprinter 4x4 from a violently swaying and lumbering cargo van into a vehicle with true German luxury car feeling and control, both on and off road. Vehicle control and suspension compliance are the two areas of ride quality we focused on when engineering this kit, and the payoff is increased performance over any terrain while also improving handling for unexpected emergencies.
The Mini Leaf Spring pack offers a cost effective way to increase spring rate in the rear of your Sprinter, add approximately 1.25" of rear lift and restore lost ride height. Van Compass’ mini spring is tuned to work perfectly with the OEM spring and represents an excellent solution to maintain factory wheel position and leaf spring geometry while restoring suspension up-travel on a heavy van.
