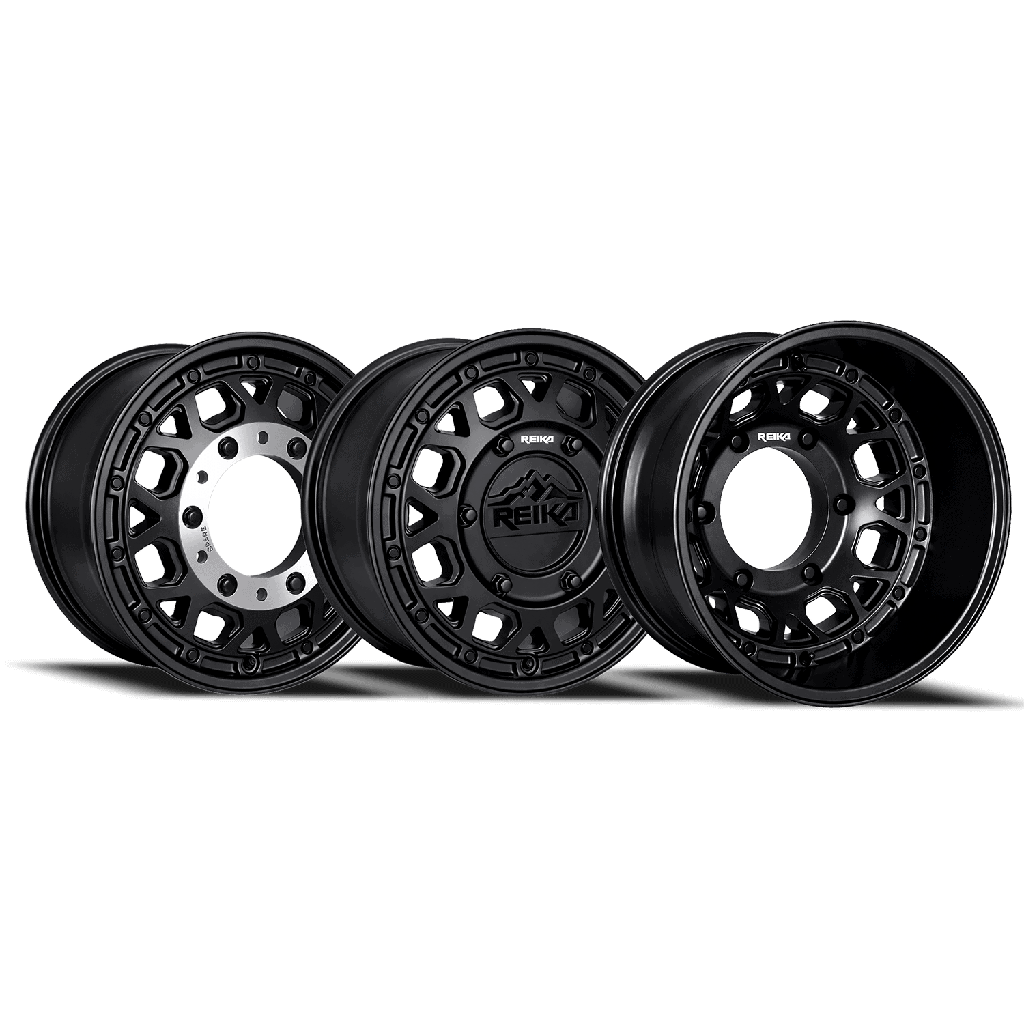

REIKA R45V Marauder 17-inch Super Single Wheel Set
Five-wheel super-single conversion set
The REIKA R45V Marauder set includes two front wheels, two dual-valve rear super-single wheels, one dual-mounting spare wheel, 24 M14x1.5 spline lug bolts, and a lug key. The spare is for temporary universal fit and is not a permanent replacement wheel.
Published wheel specifications
- Size: 17x8
- Bolt pattern: 6x205 mm
- Offset: -120 mm
- Hub bore: 161.1 mm
- REIKA-published maximum load: 4,650 lb
- Finishes: Satin Gunmetal or Satin Black
- Dual-valve rear design supports newer TPMS-equipped vans
285/75R17 versus 295/70R17
| Nominal measurement | 285/75R17 | 295/70R17 |
|---|---|---|
| Section width | 11.22 in (285 mm) | 11.61 in (295 mm) |
| Overall diameter | 33.83 in | 33.26 in |
| Sidewall height | 8.42 in | 8.13 in |
The 295/70R17 is about 0.39 in wider. The 285/75R17 is about 0.57 in taller overall and adds about 0.29 in of nominal axle clearance.
These are nominal size calculations. Actual mounted dimensions vary by tire model, wheel width, inflation, load, and manufacturer specifications.
Fitment requirements
REIKA recommends 285/75R17 or 295/70R17 tires for the Mercedes application. The vehicle must be lifted; mudflap relocation and trimming are required. This conversion is not compatible with Mercedes-Benz factory super-single systems. Confirm chassis, axle, suspension, brake, tire load, and clearance requirements before ordering or installation.
Vehicle-specific fitment approval and current vendor availability are required before the quotation is marked Ready to Send.
