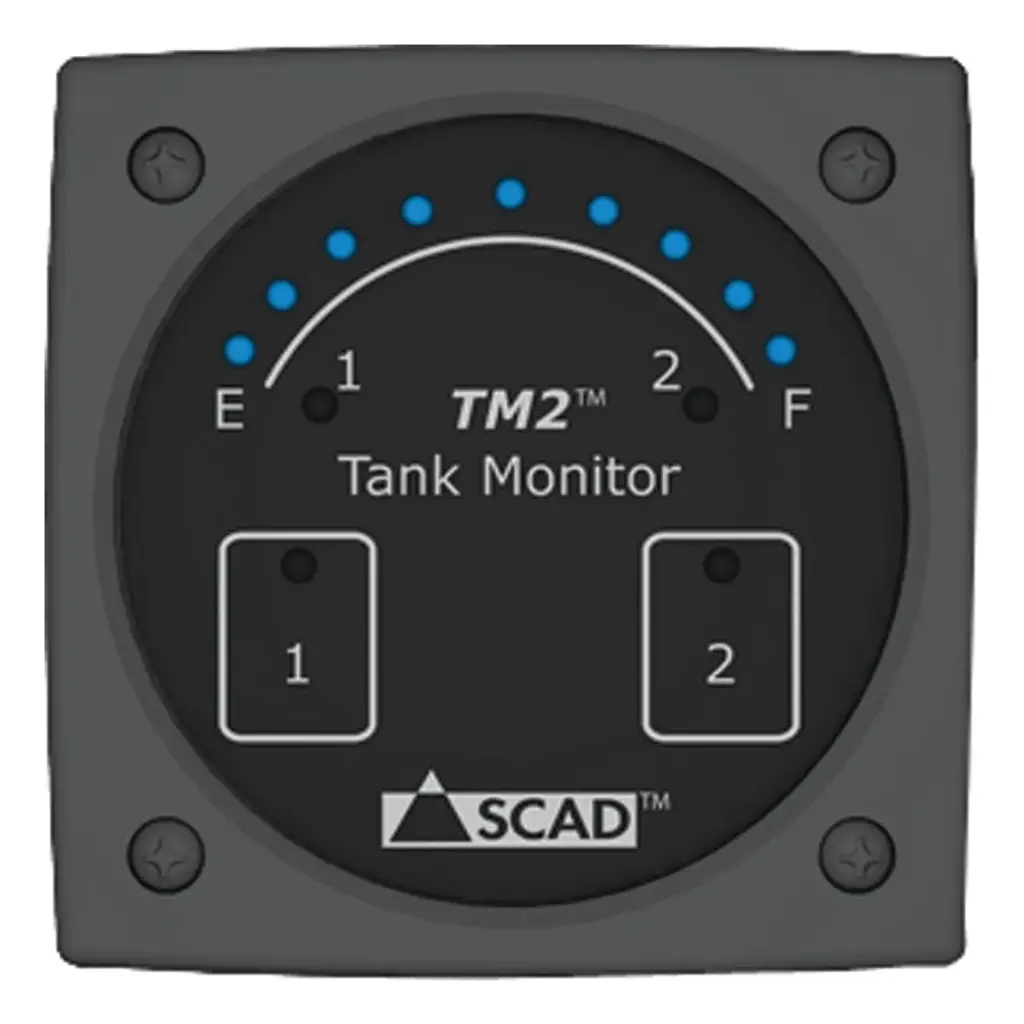

SCAD Technologies - TM2 Tank Monitor for Two Tanks
Monitor two fresh water, grey water, or holding tank levels by simply tapping a touch-pad.
Features:
Features:
- Can be used with a variety of sensors (All sensors sold seperately)
- Optional external sensor easily sticks onto the outside of plastic and composite tanks
- Optional internal sensor available for metal tanks
- Compatible with most fuel float sensors
- Compact surface mount size (only 1/2" hole required for wires)
- Continuous read function provides hands-free monitoring
- Visual alarm that is user selectable on for empty or full
- External alarm control wire
- Accommodates all tank shapes
- Easy to install, easy to operate, reliable and cost effective solution for monitoring tank levels
- Tank level can be continuously viewed while filling or emptying tank
- Powers external devices during alert conditions
- Small surface mount footprint saves space
Click HERE for additional info & technical details
SPECIFICATIONS
- Power: 12 to 24V DC
- Size: 2.2 x 2.2 x 0.3 inches (56 x 56 x 7.6 mm)
- Sensor Type (All sensors sold separately)
- SCAD external sensor available for water and waste
- SCAD internal sensor available for metal tanks
- Monitor is compatible with 240 to 33 Ohm and 10 to 180 Ohm float sensors for fuel
- Alarm: Visual alarm on empty or full, or no alarm
- Power wire provides 1 amp at battery voltage; can be set to energize on alarm condition
