  2. Van Compass - Front Shock Kit (Falcon 3.3 Fast Adjust) | 15+ Sprinter (4X4, AWD, 2500, 3500)

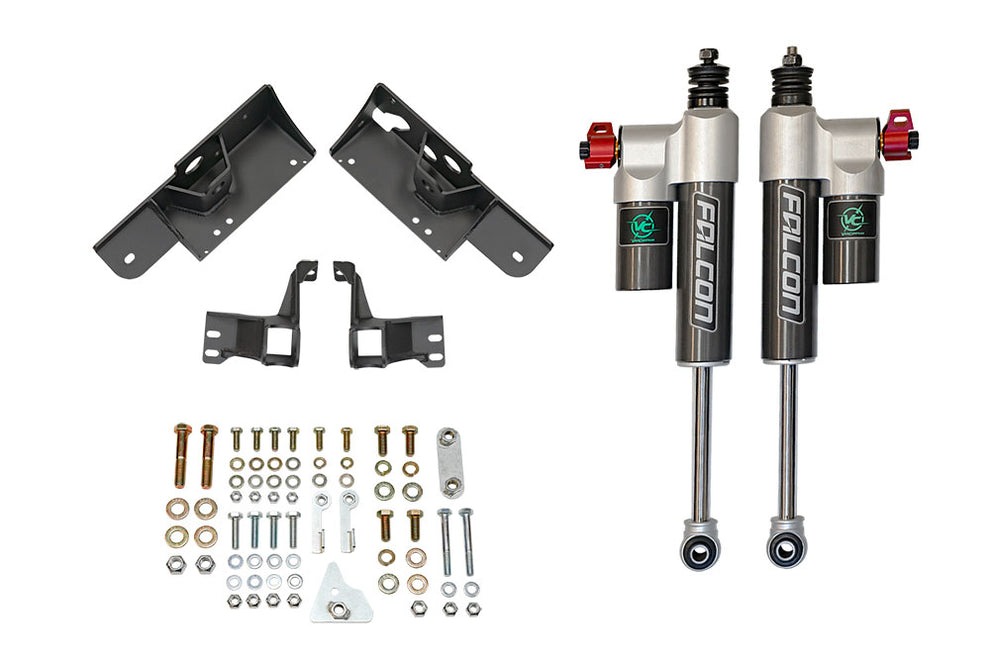

Van Compass - Front Shock Kit (Falcon 3.3 Fast Adjust) | 15+ Sprinter (4X4, AWD, 2500, 3500)

https://www.overlanddesignbuild.com/web/image/product.template/366/image_1920?unique=45673b5

Tuned 3.3 Fast Adjust Shocks, Key Benefits

  • 10 compression damping settings via the 3.3 fast adjust knob
  • Internal SP2 free bleed allows 2 distinct tune profiles
  • Smoother ride, better cornering, reduced sway and wind buffeting
  • More effective bump control than factory shocks

4x4 Sprinter owners know the struggle: stiff ride over small bumps and excessive sway on uneven terrain. Van Compass custom-tuned Falcon shocks fix both. Washboard harshness, abrupt impacts, and side-to-side sway are all significantly reduced. The aluminum piggyback reservoir design offers serious adjustability through three positions: Position 1 for light, fast riding on rough roads; Position 2 for dialing in your preferred ride with 8 micro-adjustments; Position 3 for heavy loads or maximum control. The knob is easy to reach and adjust while installed.

Technical highlights

  • 2.3" aluminum body — dissipates heat, resists corrosion
  • Full 2" damper piston (238% increase over stock)
  • 3/4" hard chromed shaft for impact and corrosion resistance
  • High-pressure nitrogen charge for cavitation-free operation

Wheel Fitment Note:

Recommended Wheel Size: 17" x 8.5", +45mm offset. 2023+ AWD vans require fitment of a wheel with 6" backspacing or less. For a 17"x8" wheel, this corresponds with a +38mm offset. Wheels with a greater offset, like +52mm or more backspacing, like 6.5", will rub the tire on the shock reservoir when the steering is turned.

$ 1,488.74 1488.74 USD $ 1,488.74

$ 1,591.90

Not Available For Sale

This combination does not exist.

No payment is collected online. Add items to your Quote Cart, then submit it for fitment, availability, installation, and pricing review within one business day.

Product Brand: Van Compass
Contact Us


Share

KEY BENEFITS
  • 10 compression damping settings with the 3.3 fast adjust knob
  • Internal SP2 free bleed adjustment allows for 2 distinct tune profiles
  • Increase in comfort and vehicle control
  • Enhanced cornering stability
  • Reduced sway and wind buffeting
  • Controls large and small bumps more effectively than factory shocks
  • 100% bolt on with basic tools

Features:
  • 2.3" aluminum body dissipates heat and resists corrosion.
  • Full 2" Damper piston (238% increase over stock)
  • 3/4" diameter hard chromed shaft resists impact and corrosion.
  • High pressure nitrogen charge ensures cavitation free operation
