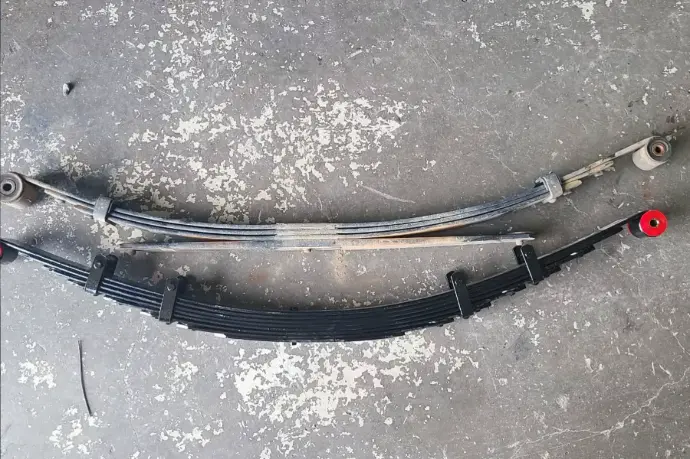

Custom-Built Heavy Duty Leaf Springs (Pair) – Sprinter, Revel, Ekko & Transit

• Vehicle Platform & Chassis Sprinter 2500 (Winnebago Revel, Storyteller, Custom Van) Sprinter 3500 / 3500XD (Winnebago Ekko, Heavy Class C) Ford Transit 250 / 350 / 350HD
• Rear Axle Pricing Capacity Base: Up to 4,200 lbs Up to 4,300 lbs + $ 11.20 Up to 4,400 lbs + $ 22.40 Up to 4,500 lbs + $ 33.60 Up to 4,600 lbs + $ 44.80 Up to 4,700 lbs + $ 56.00 Up to 4,800 lbs + $ 67.20 Up to 4,900 lbs + $ 78.40 Up to 5,000 lbs + $ 89.60 Up to 5,100 lbs + $ 100.80 Up to 5,200 lbs + $ 112.00 Up to 5,300 lbs + $ 123.20 Up to 5,400 lbs + $ 134.40 Up to 5,500 lbs + $ 145.60 Up to 5,600 lbs + $ 156.80 Up to 5,700 lbs + $ 168.00 Up to 5,800 lbs + $ 179.20 Up to 5,900 lbs + $ 190.40 Up to 6,000 lbs + $ 201.60 Up to 6,100 lbs + $ 212.80 Up to 6,200 lbs + $ 224.00 Up to 6,300 lbs + $ 235.20 Up to 6,400 lbs + $ 246.40 Up to 6,500 lbs + $ 257.60 Up to 6,600 lbs + $ 268.80 Up to 6,700 lbs + $ 280.00 Up to 6,800 lbs + $ 291.20 Up to 6,900 lbs + $ 302.40 Up to 7,000 lbs + $ 313.60 Up to 7,100 lbs + $ 324.80 Up to 7,200 lbs + $ 336.00 Up to 7,300 lbs + $ 347.20 Up to 7,400 lbs + $ 358.40 Up to 7,500 lbs + $ 369.60 Up to 7,600 lbs + $ 380.80 Up to 7,700 lbs + $ 392.00 Up to 7,800 lbs + $ 403.20 Up to 7,900 lbs + $ 414.40 Up to 8,000 lbs + $ 425.60 Over 8,000 lbs (Custom Quote Review)
• Desired Rear Lift Height Factory Height +2.0″ Lift +2.75″ Lift (Replaces factory/aftermarket lift block) Custom Lift Height

Fabrication build sheet

Tell Alcan how your rig is loaded

Exact Scale Weight (lbs) ?

Enter your rear axle weight from a certified CAT scale with the rig loaded to ~75% of your standard travel setup.

Pricing capacity

Base price $1,960.00

Additional capacity

Configured spring price

Weight Distribution & Layout Bias ?

Standard / Balanced Layout Heavy Driver-Side Bias Revel driver-side lean correction Heavy Passenger-Side Bias Supertramp / galley layouts

Rear Cantilever Gear

Rear Tire Carrier Storage Box / Bike Rack Heavy Motorcycle / E-Bike Carrier

Custom quote review: Builds over 8,000 lbs need engineering review before final pricing. The $1,960.00 base is a starting price, and your configuration will still be saved to the Quote Cart.
