ODB - 12 Volt Heat Cable, Freeze Protection Kit (66 FT) | 2021-2024 Winnebago Revel

Extend your Winnebago Revel’s wet-camping season with our 12V Heat Cable Kit, engineered specifically for 2021–2024 Revel models. Designed for seamless integration with the HydroLink Water Control Panel, this system provides automated freeze-risk mitigation for critical plumbing runs during cold-weather operation (not intended for extreme sub-zero conditions).

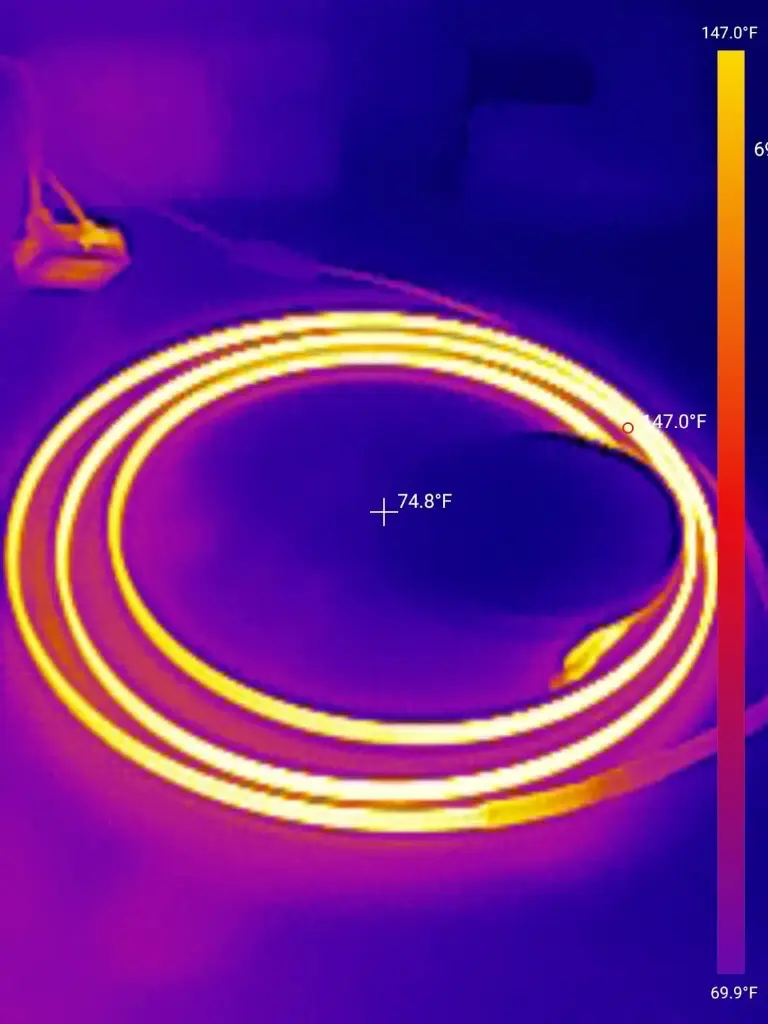

This kit runs approximately 66 ft (20 m) of self-regulating 12V heat cable along the vulnerable plumbing runs, automatically adjusting heat output — up to ~150°F under cold conditions — to maintain consistent heat without hot spots.

A bi-metal thermostatic switch automatically controls system operation, activating the heat cables at approximately 30°F and switching them off near 40°F. This allows the system to provide automatic freeze-risk mitigation without requiring manual driver intervention.

Startup current may briefly reach ~24–26A, then self-regulates lower in normal operation. Adequate battery capacity (we recommend a 600–900Ah lithium bank) and proper system design are required.

Key Benefits

Freeze-Risk Mitigation
Provides supplemental heat to vulnerable water lines during cold-weather operation.

Self-Regulating Heat Cable
Automatically adjusts heat output to reduce overheating and eliminate hot spots.

Full Plumbing Coverage
66 ft of total heat cable coverage across critical plumbing runs.

Automatic Thermostatic Control
Activates and deactivates automatically based on temperature.

HydroLink-Ready Integration
Engineered for compatibility with the HydroLink Water Control Panel system.

Efficient Power Use
Startup current may briefly reach ~24–26A, then self-regulates lower in normal operation.

What’s Included

• ≈66 ft of self-regulating 12V heat cable
• One (1) Bi-Metal Thermostatic Switch (Activates ~30°F / Deactivates ~40°F)
• Marine-grade dual 12‑circuit fuse panel with integrated ground bus, rated for up to 100A.

Battery runtime estimate

Heat cable only: about 6 hours per 100 Ah at a 13.4 A continuous maintenance draw, or about 12 hours per 100 Ah at an assumed 50% thermostat duty cycle (6.7 A average). These examples assume 80% usable battery capacity, no charging, and no other electrical loads. A single 320 Ah battery provides about 19 hours continuous or 38 hours at the assumed 50% duty cycle. Cold starts, colder conditions, wind, and other electrical loads can shorten runtime; these are planning estimates, not guaranteed operating times.

When the heat cable and both pairs of tank heating pads run continuously together, the estimated load is 36.6 A (13.4 A cable + 23.2 A pads): about 2.2 hours per 100 Ah, or 7 hours from a single 320 Ah battery, under the same assumptions. Other vehicle loads reduce this further. A 600-900 Ah lithium bank remains recommended for extended winter use.
